AgroGlide Two-Wire Decoder Pressure

Two-Wire Decoder

AG-PRESSURE

[AG-PR]

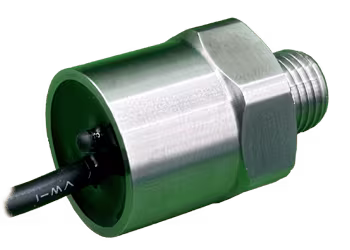

AgroGlide™ Two-Wire Decoder. The AG-Pressure sensor is used to monitor water pressure through a two-wire path. The pressure readings are processed by the controller to detect faults in the irrigation system. The advanced custom AGP communication protocol is used for regular communication with the controller.

The AG-Pressure can be connected up to 5,000 meters from the controller, depending on the wire gauge used.

Main Features

Status Indication.

Status LED indication. Easy for troubleshooting and maintenance.

Communication

Advanced custom AGP protocol used for reliable communication. Provides regular reading updates to the controller

Surge protection

Built-in surge protection. No need for a separate surge protection device.Reduce wire connections, time, and cost.

Low Current

It only takes a few milliamps of current.

Specification

  • Pressure Reading range: 0 to 1000 kPa
  • Thread size: 1/4" BSP
  • Sensor current: <5 mA
  • Max. distance from controller: 5000 meters
  • Dimension : 5 x 3 x 1.6 cm (1.08 x 1.65 inches)
  • Weight: 90 grams
