AgroGlide Two-Wire Decoder Temperature

Two-Wire Decoder

AG-TEMPERATURE

[AG-TP]

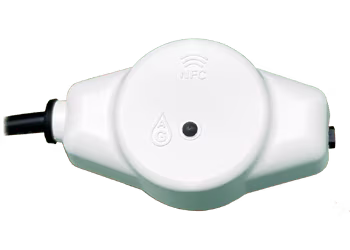

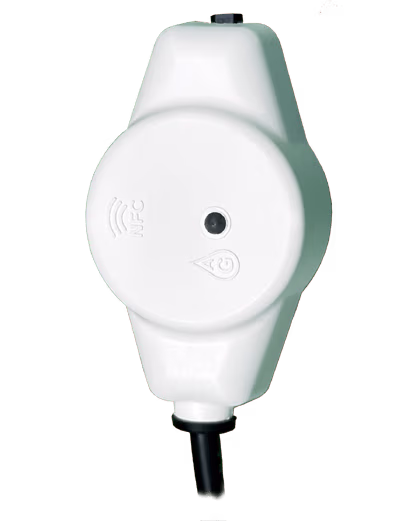

AgroGlide™ Two-Wire Decoder. The AG-Temperature decoder is used to monitor field temperature and control programs based on temperature readings. This feature can easily be used for frost protection programs, misting control, and more. The advanced custom AGP communication protocol is used to regularly communicate with the controller. Built-in NFC technology allows for easy configuration of sensor number, eliminating the need for a special, costly programmer.

The AgroGlide mobile app can program and test the AG-Temperature without the need to power it, making it highly convenient for field installation and testing. All configurations can be saved inside the decoder memory and retrieved at any time using the AgroGlide app, eliminating the need for special tags or stickers to mark the address and type on the decoder.

The AG-Temperature can be connected up to 5,000 meters from the controller, depending on the wire gauge used.

Main Features

Re-Programmable.

Re-programmable to any address at any time. Reliable bi-directional communication.

Program by App

NFC-based Tap & Program technology. Can be configured via an NFC-enabled smart device with the app.

Surge protection

Built-in surge protection. No need for a separate surge protection device.Reduce wire connections, time, and cost.

Low Current

It only takes less than 1 milliamp.

Specification

  • Temperature reading range: -20℃ to 70℃
  • Accuracy: 1℃
  • Current: <1mA
  • Max. distance from controller: 5000 meters
  • Dimension : 5 x 3 x 1.6 cm (1.97 x 1.18 x 0.63 inches)
  • Weight: 35 grams
